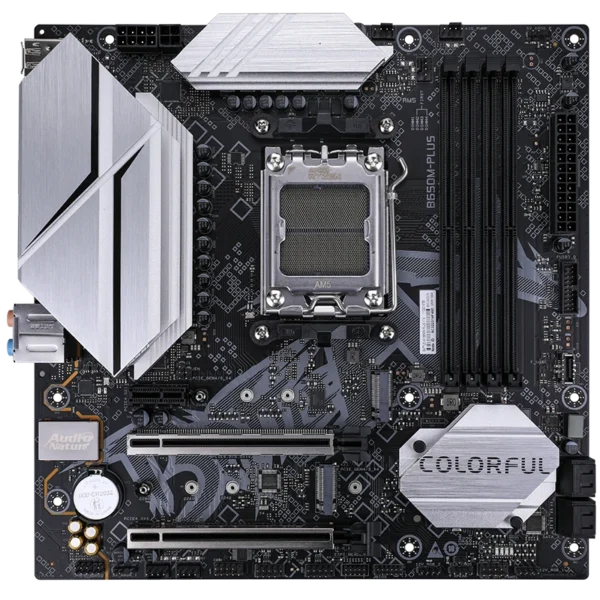

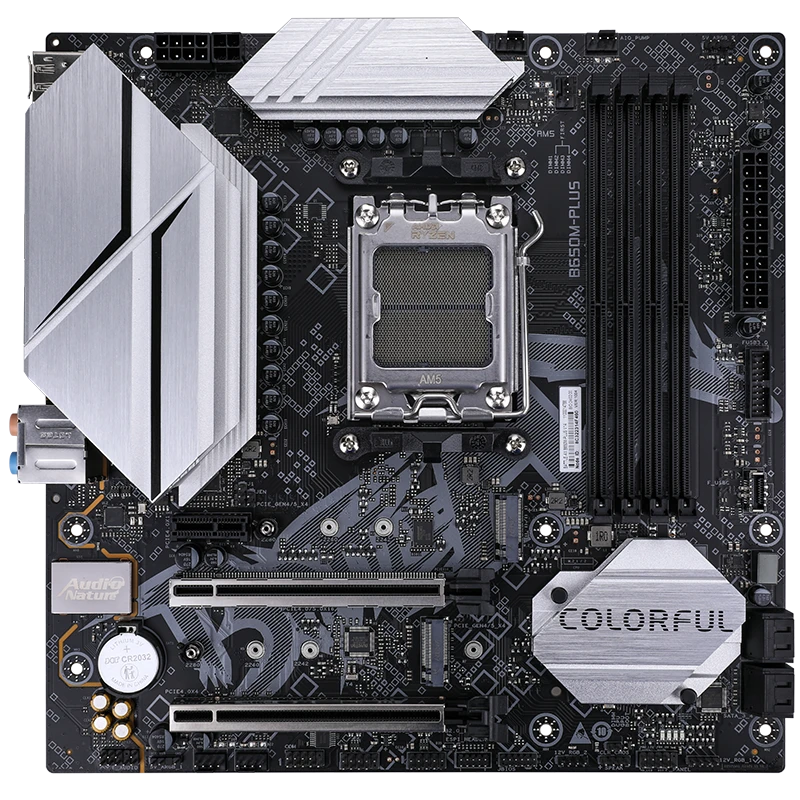

COLORFUL BATTLE-AX B650M-PLUS V14
- BẢO HÀNH 36 THÁNG
3.390.000₫
COLORFUL BATTLE-AX B650M-PLUS V14
Mô tả
TÍNH NĂNG NỔI BẬT
Bộ giáp làm mát tùy chỉnh dòng BATTLE-AX với các cánh tản nhiệt ngưng tụ phủ toàn bộ để tăng cường tản nhiệt
Áp dụng thiết kế nguồn điện gia cố 12+2+1 pha, cuộn cảm ferit F.C.C (Dr. MOS 55A)
Cung cấp 2 khe cắm SSD PCIe 5.0 x4 M.2
Cung cấp 1 USB 3.2 Gen 2 10Gbps Type-C và 1 USB 3.2 Gen 2 10Gbps Type-A giao diện phía sau tốc độ cao
Được trang bị card mạng có dây nhanh Realtek 2.5G
Hỗ trợ phần mềm điều khiển hiệu suất ánh sáng iGame Center, có thể điều chỉnh đồng bộ hiệu suất ánh sáng của bộ tản nhiệt, quạt làm mát và bộ nhớ
Mặt sau I/O hỗ trợ chức năng nâng cấp BIOS chỉ bằng một cú nhấp chuột
Sáu công nghệ bảo vệ chính đảm bảo sản phẩm hoạt động ổn định hơn
Kiểm tra nghiêm ngặt 200 quy trình với chất lượng được đảm bảo
Nâng cấp toàn diện quy trình phun nguyên tử PCB
Thông số kỹ thuật
| Model | BATTLE-AX B650M-PLUS V14 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD B650 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory – Support Extreme Memory Profile (XMP) memory technology – Support EXtended Profiles for Overclocking (EXPO) memory technology – Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices – M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) – M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) (* Is it supported PCIe 5.0 is related to the CPU used with the motherboard) |
| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-A interface -1×USB 3.2 Gen 2 Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×2.5G network interface -6×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -1×CPU fan pin -3×System fan pins -1×water cooling pump pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specifications) 1×PCIe 4.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 245mm x 245 mm |
Thông số kỹ thuật
| Model | BATTLE-AX B650M-PLUS V14 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD B650 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory – Support Extreme Memory Profile (XMP) memory technology – Support EXtended Profiles for Overclocking (EXPO) memory technology – Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices – M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) – M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) (* Is it supported PCIe 5.0 is related to the CPU used with the motherboard) |
| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-A interface -1×USB 3.2 Gen 2 Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×2.5G network interface -6×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -1×CPU fan pin -3×System fan pins -1×water cooling pump pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specifications) 1×PCIe 4.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 245mm x 245 mm |
